Beretta Fire Rated Security Shutters

Government legislation was introduced on 1st November 2019 resulting in all fire shutters to be CE marked. All of our fire rated products comply with legislation and can be manufactured to suit any building code and regulation requirements.

We have a wide range of Fire Rated Security Roller Shutters. The minimum fire rating is 60 minutes increasing to 120 minutes and 240 minutes. Our roller shutters offer a fire rating whilst maintaining a high level of security. Beretta Security Doors Ltd are based in Shrewsbury, Shropshire.

Got a question or want to order?

Speak to our friendly knowledgeable team on 01743 211 265

Contact us »

Click to Call »

Automatic operation

Our Fire Rated Security Roller Shutters will automatically close when the alarm is raised and can be connected to a fire alarm, fusible link or a heat detector. The spread of fire is massively reduced due to their quick response time, providing protection to people and property in the event of a fire.

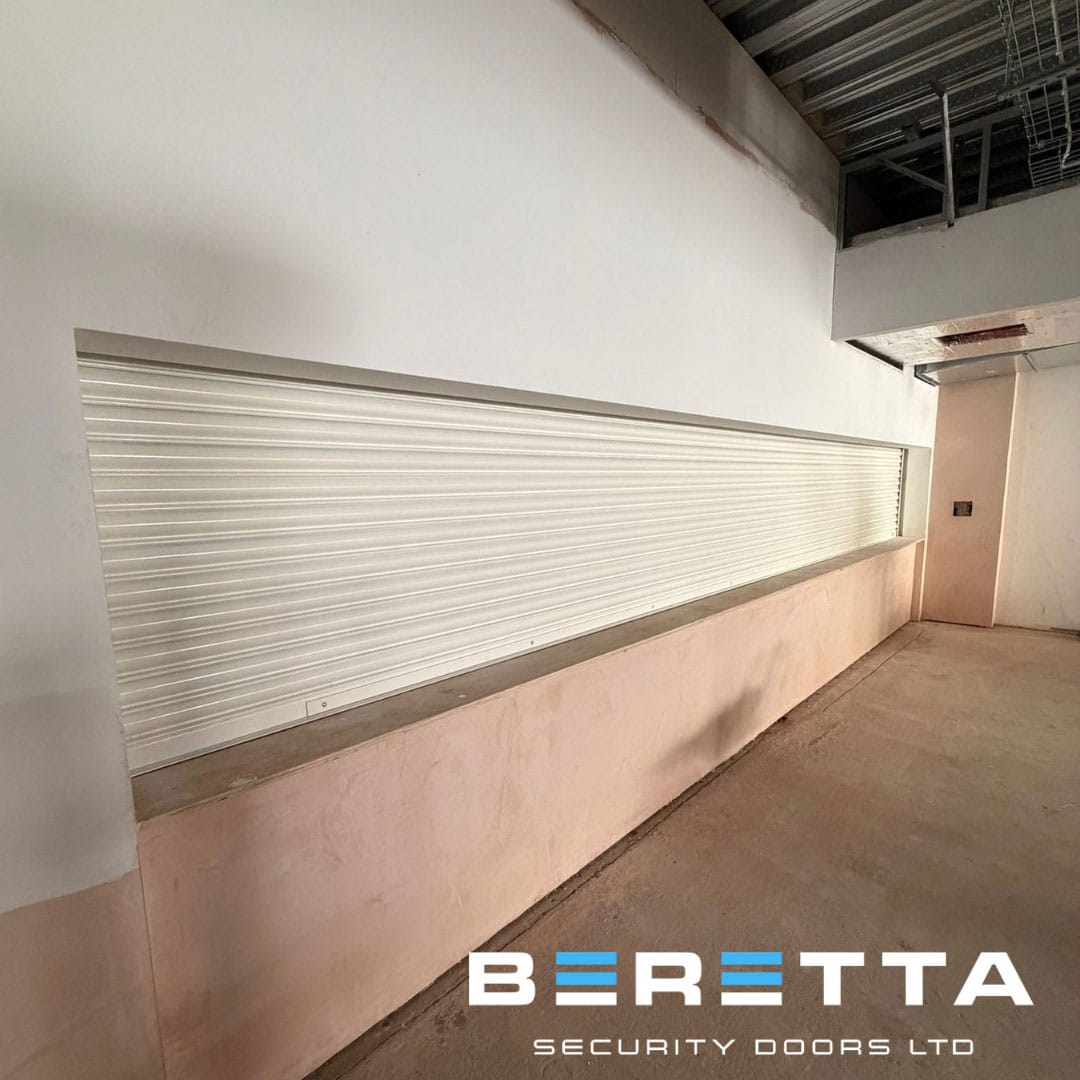

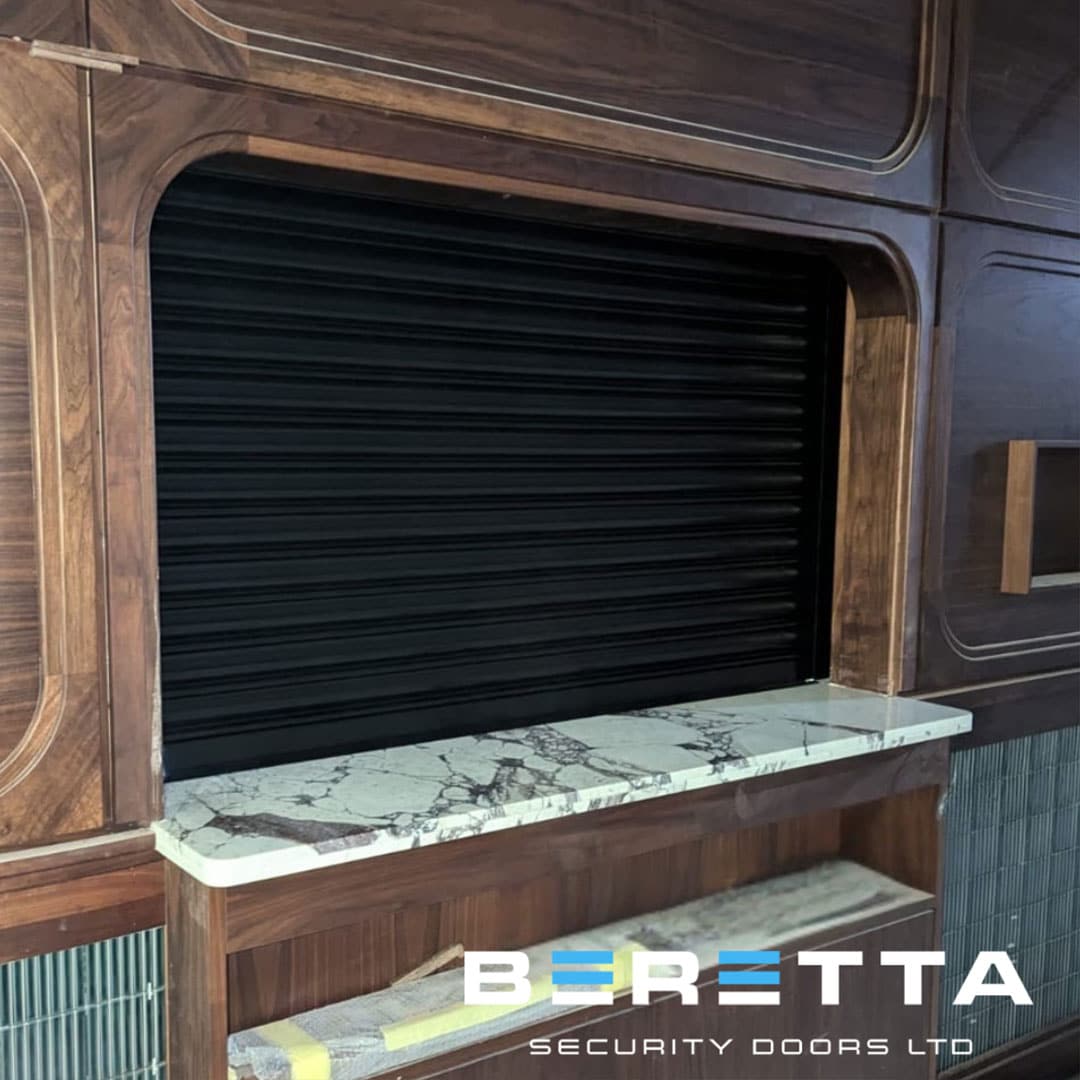

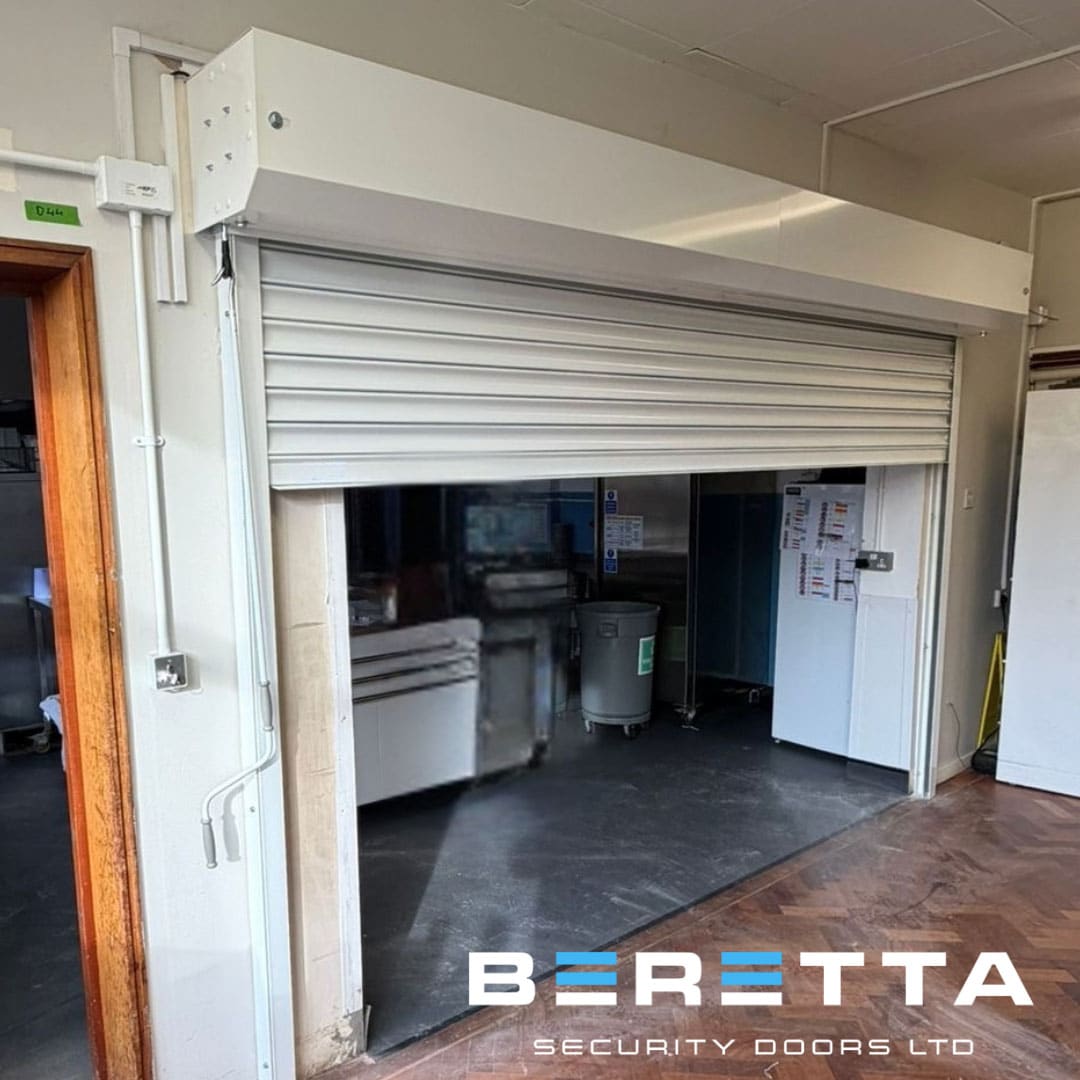

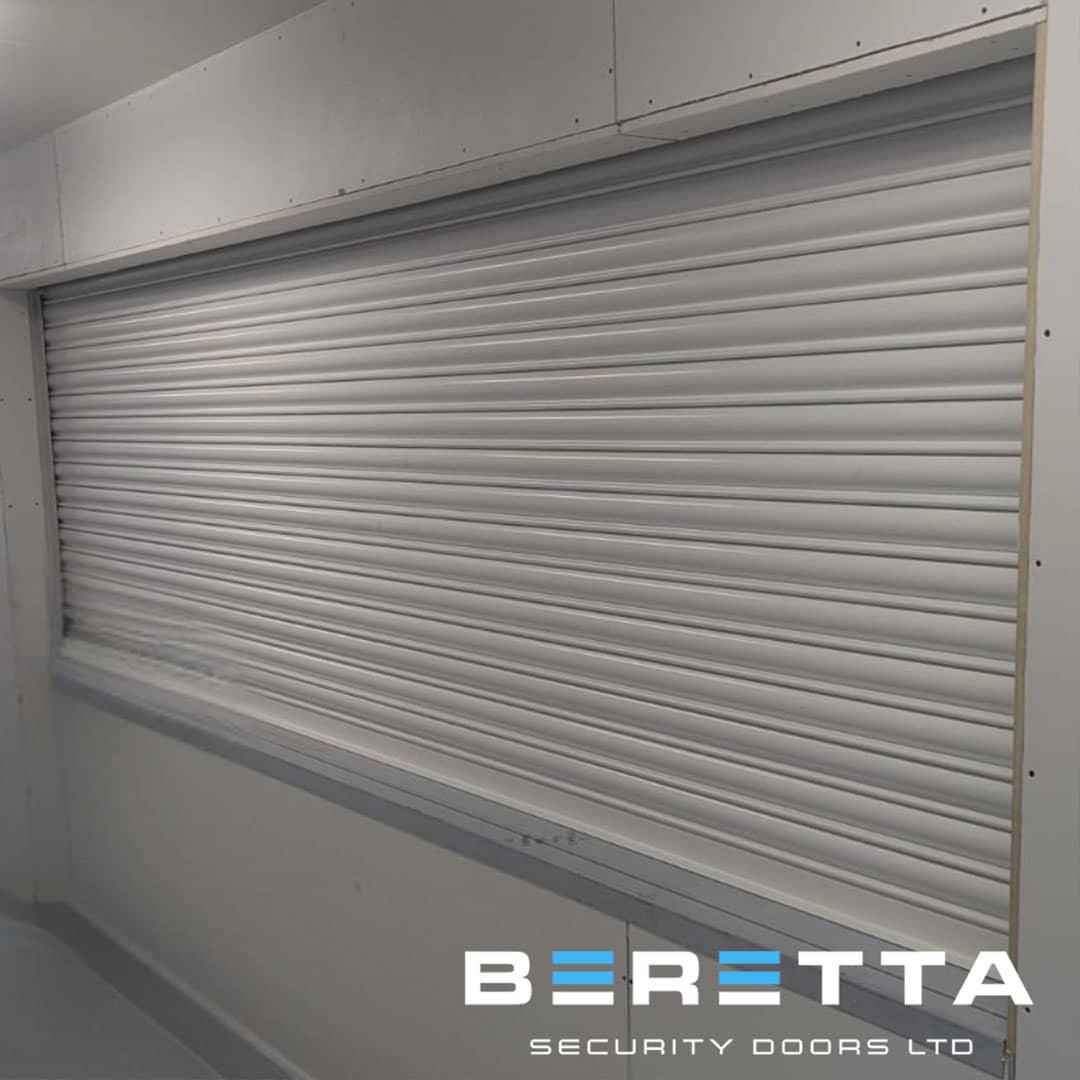

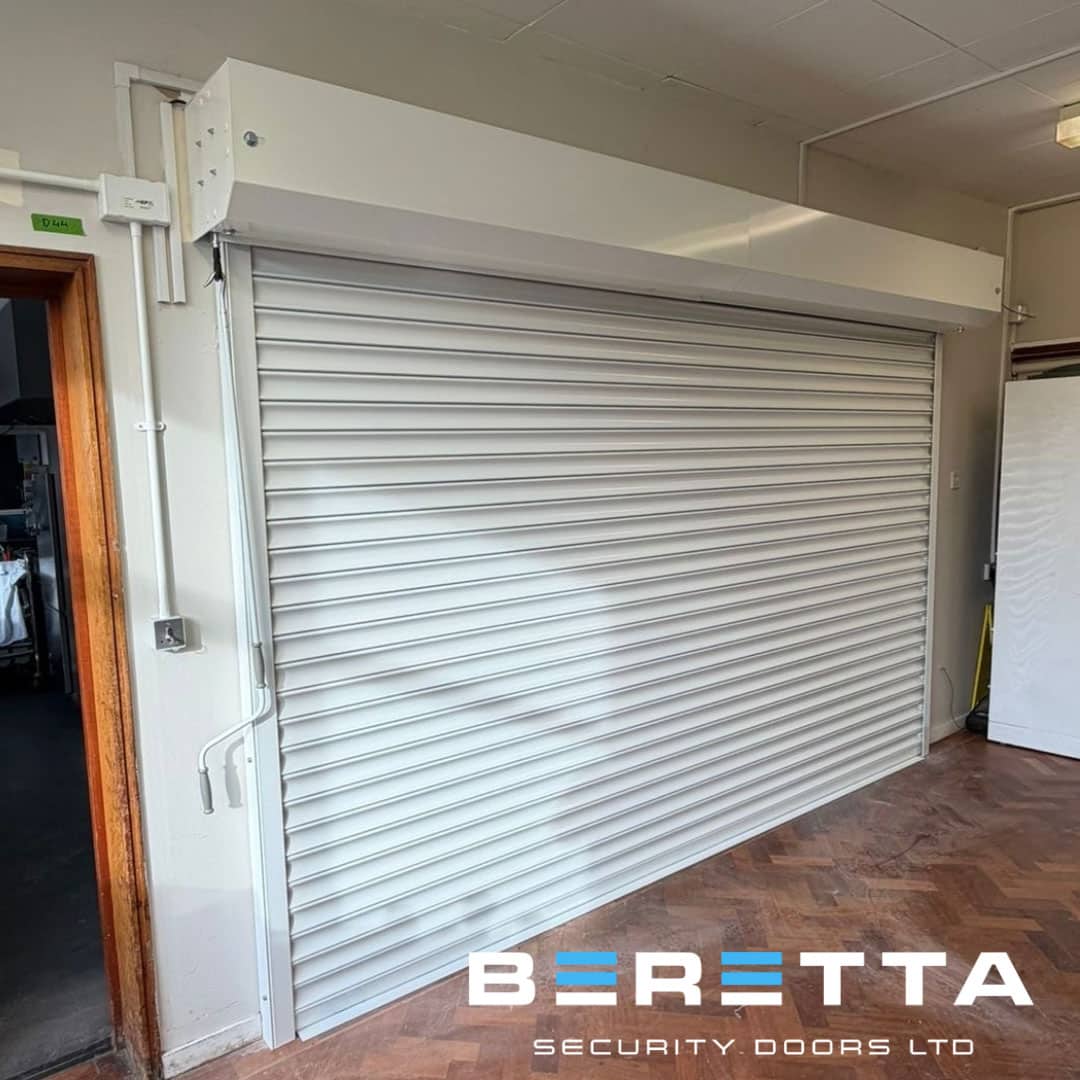

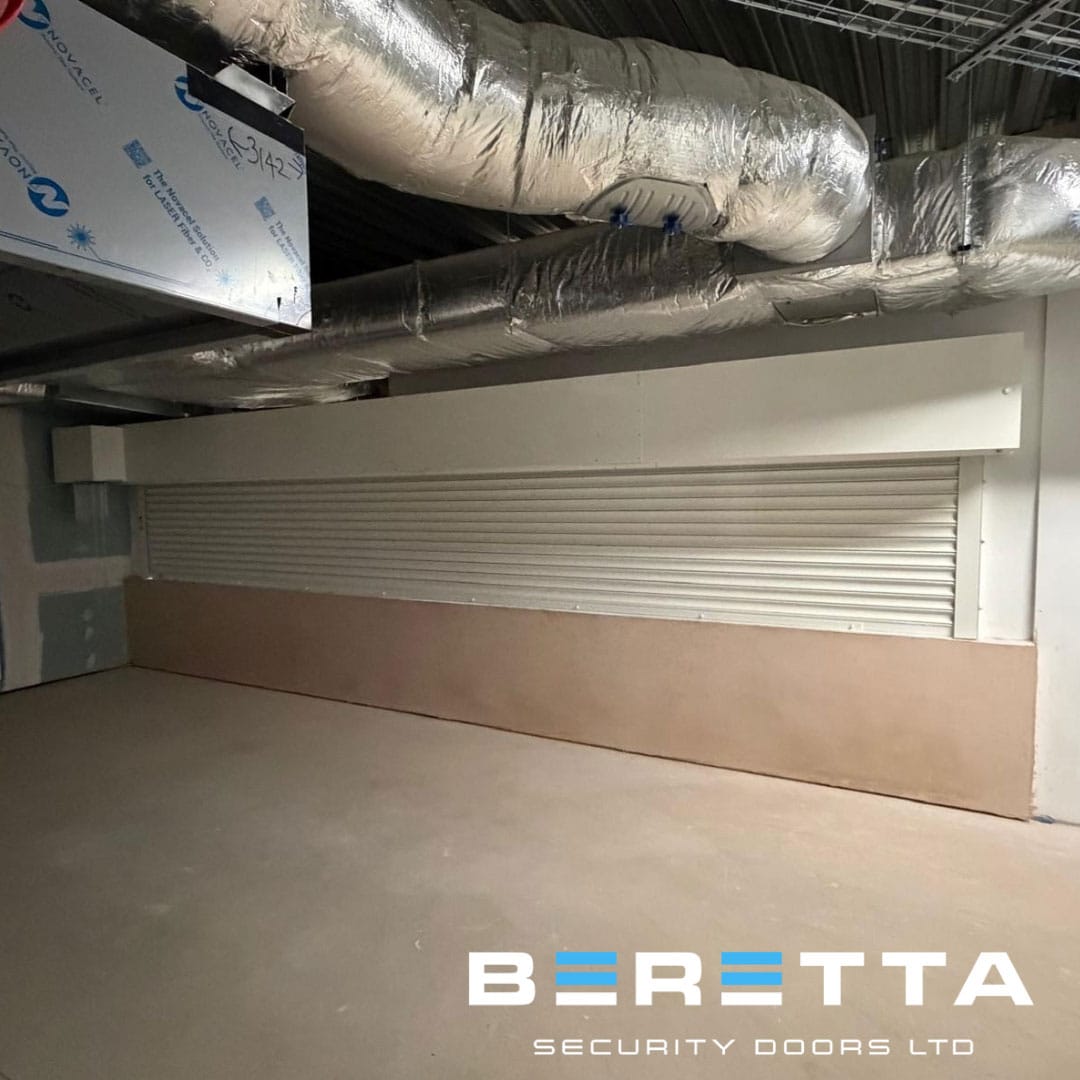

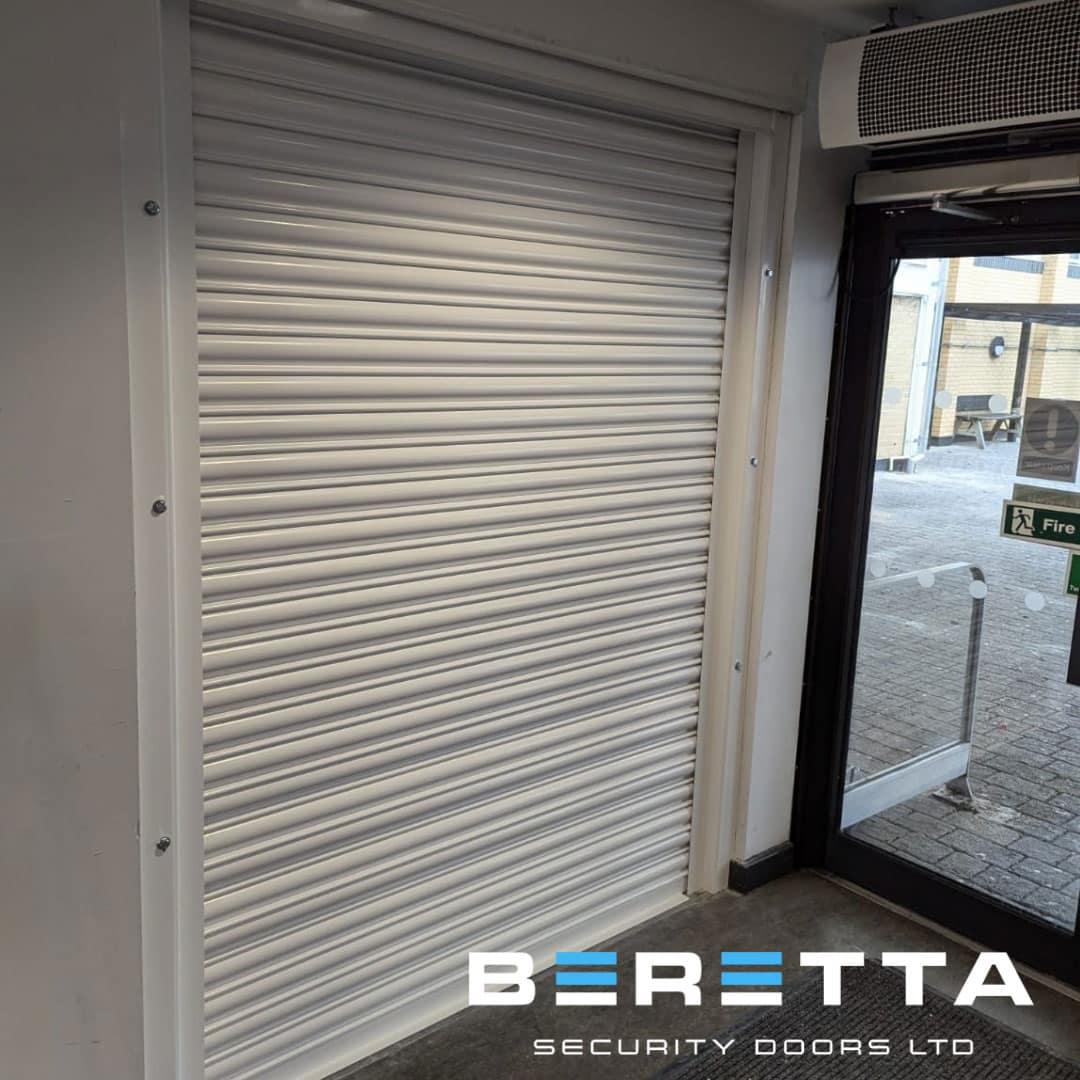

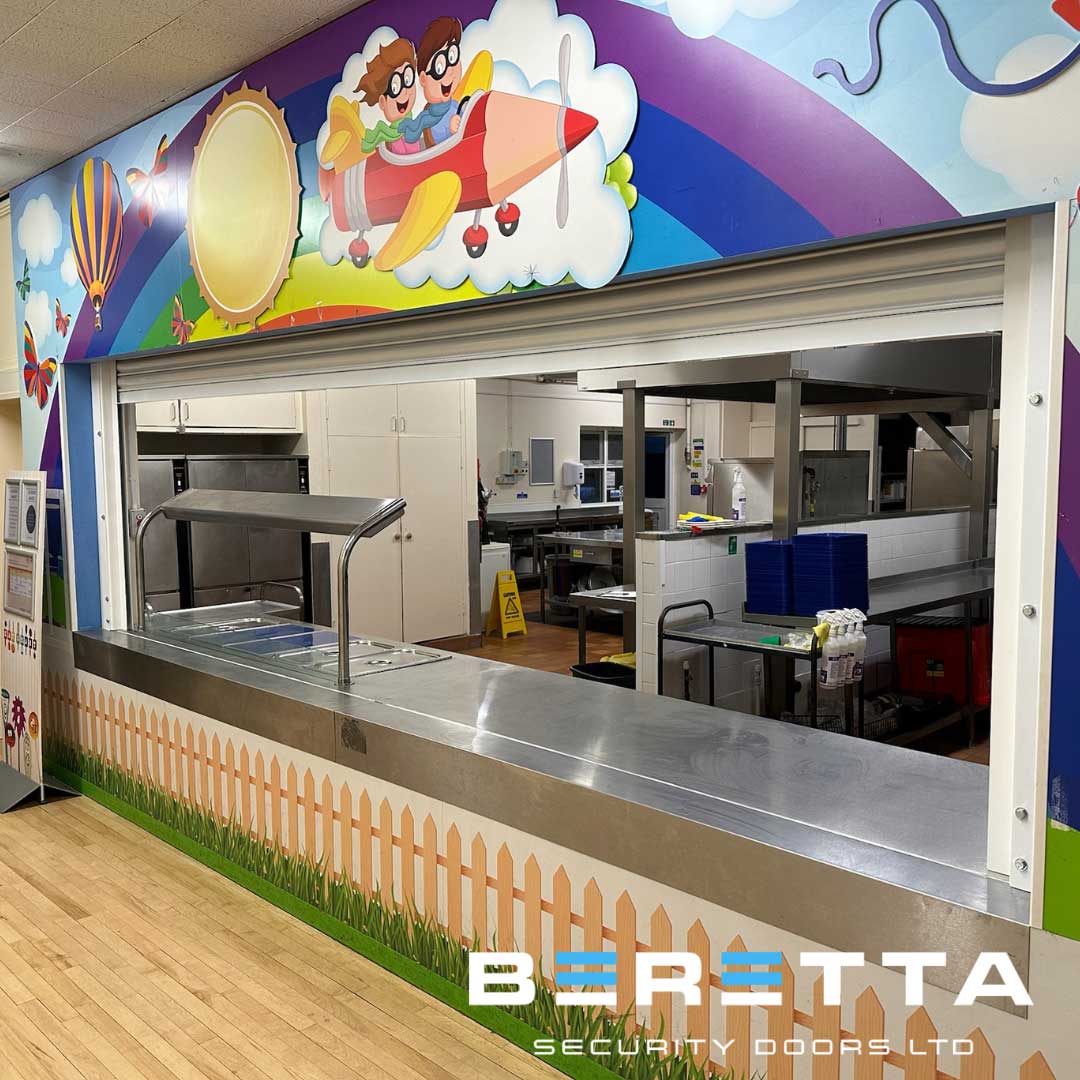

Our Fire Rated Security Roller Shutters are widely installed in schools, restaurants and shopping centres. They are made to measure, galvanised as standard though can be powder coated to any standard RAL colour to compliment the aesthetics or co-ordinate with any commercial brand colours at a surcharge.

All of our fire rated products are designed and tested to comply with building codes, fire safety standards and regulations. We can provide any drawings and can liaise with architects, site managers and contractors to ensure the project process is smooth and efficient throughout.

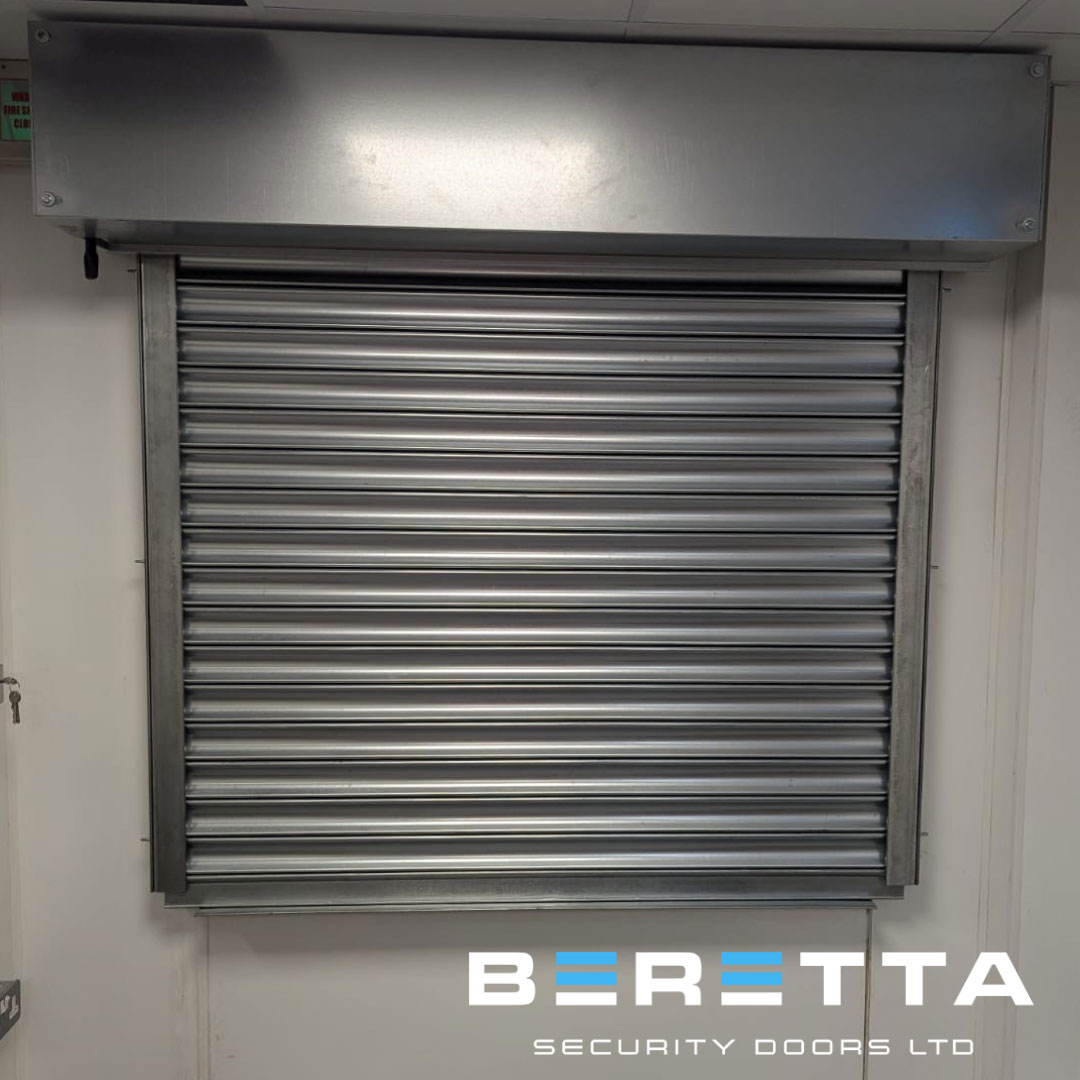

BDF60 Fire Rated Security Shutters

The BDF60 is a security roller shutter manufactured to contain and prevent the spread of fire for up to 60 minutes, whilst maintaining a high level of security. This door is often installed as a legal requirement in high risk fire areas, such as schools, airports, food and hospitality premises. This door is galvanised, but can be powder coated on request.

Hidden by css

Product Details

Product: BDF60 - Fire Rated Security Shutter for resistance for 1 hour.
Fit: Internal, reveal fit or external face fit
Popular Use: Retail, Commercial and Industrial
Security Level: Medium to High Security with 60 minute Fire Rating.

Product Specifications

Slat Options: 0.7mm Single-skinned curve steel.
Maximum width: 6000mm
Finish: Galvanised as standard; Option to upgrade to any powder coated RAL colour for a surcharge.

Curtain Specification
Curtain weight per m²: 9.6kg
Maximum Surface Area: 18m²
Box: Galvanised steel casing and fascia as optional extra.
Guides: Width 65mm Galvanised steel guide channels with a ‘T’ Shaped Bottom Rail.

Guide Height (mm)	Plate size (mm)
2600	305
3800	355
5000	400

Operation Options

Operation Options: Tubular motor, Outboard/Inline Motor operation.
All of our roller shutters come with built in or added safety brake systems as standard. All have manual override options, customised to suit your application. The doors can be operated in various ways, to suit you and your environment.
Tubular/ Inline motors come with key switch operation, battery back up and visual warning panel as standard.

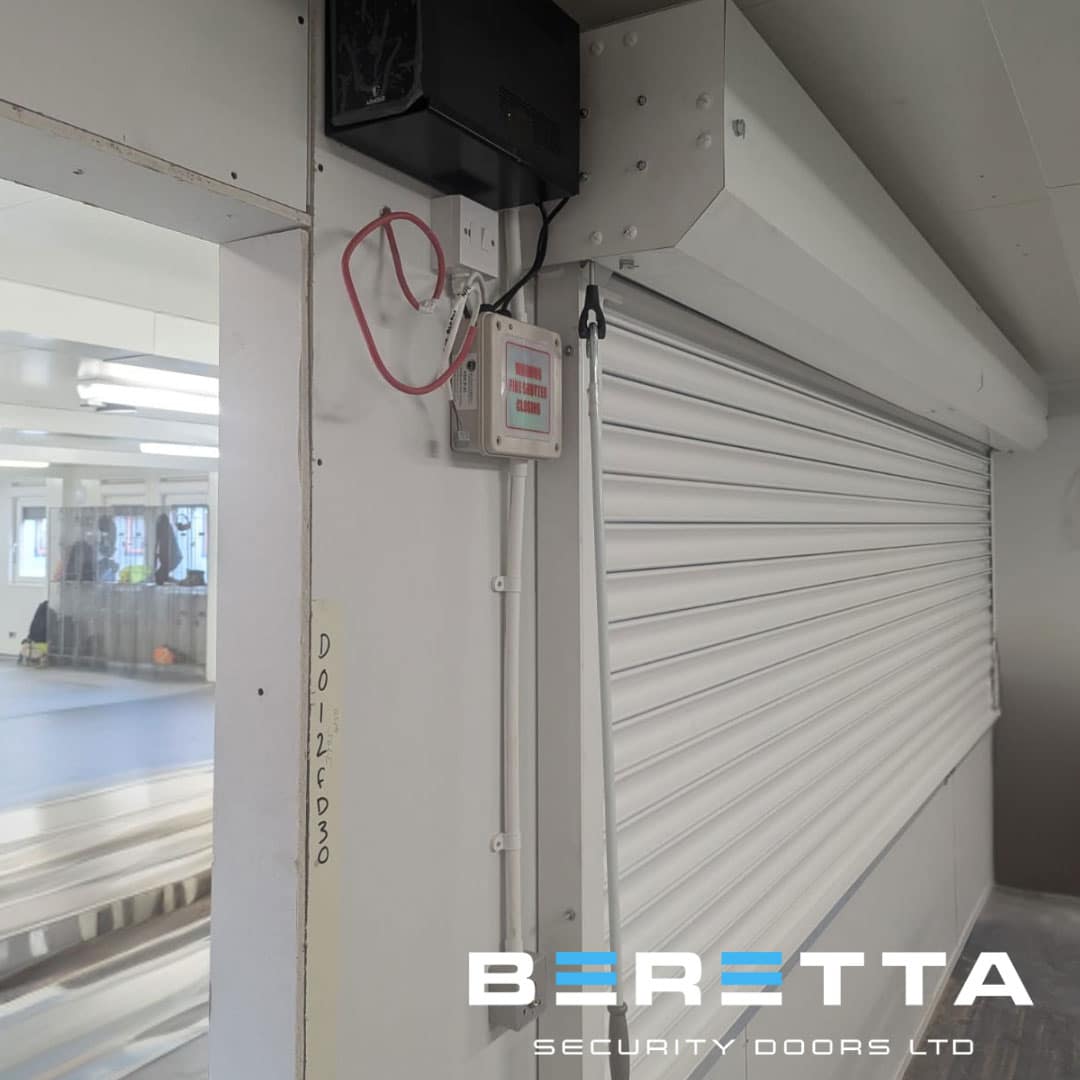

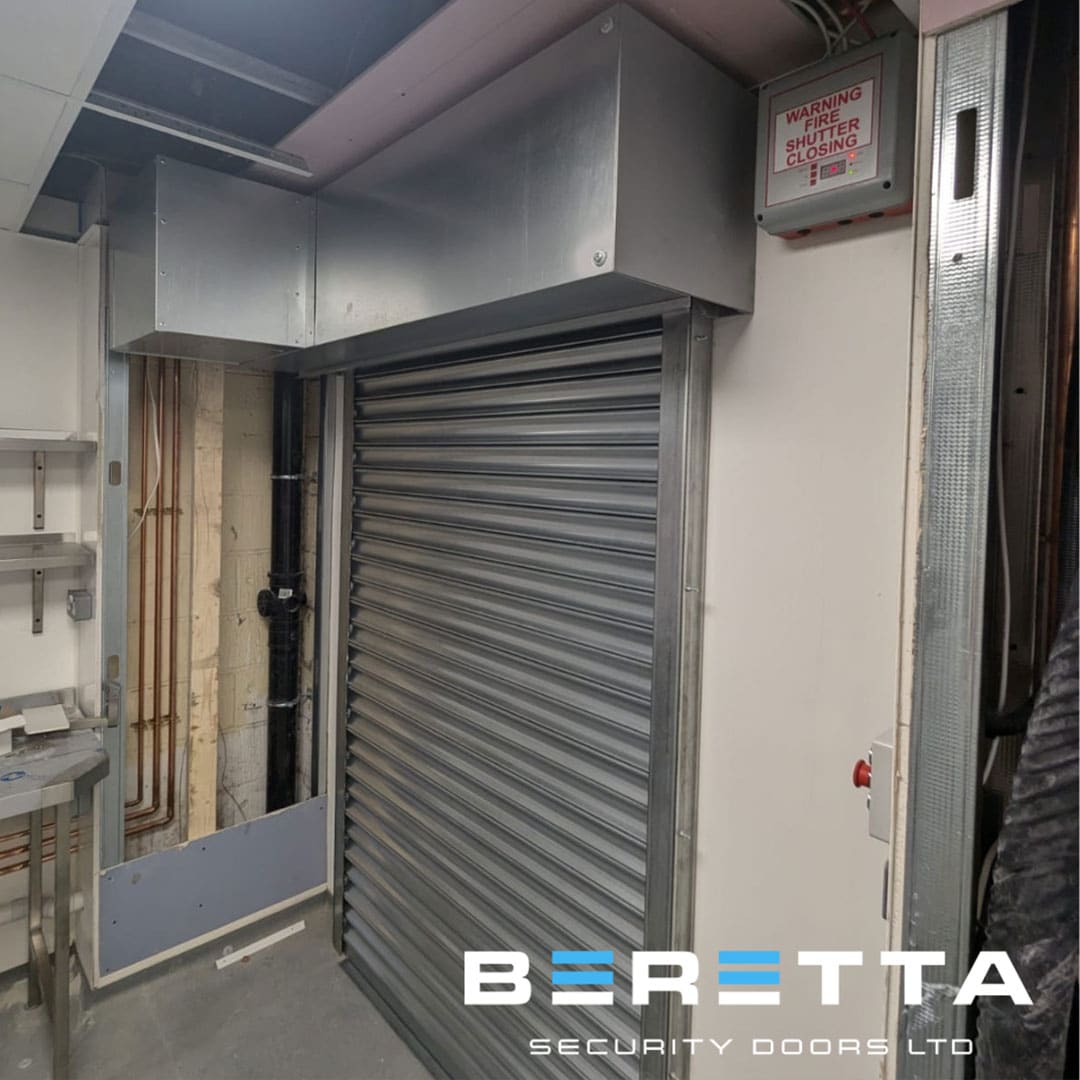

Fire Security Rated shutters to be connected to a fire alarm/ smoke detectors, via our visual warning panel. Ensuring they automatically close in the event of an active fire alarm signal.

CAD Files & Drawings

Download BDF60 Drawing Pack

Download »

BDF60 Fire Rated Security Shutters from Beretta Security Doors, Shrewsbury, Shropshire.

BDF120 Fire Rated Security Shutters

The BDF120 is a security roller shutter manufactured to contain and prevent the spread of fire for up to 120 minutes, whilst maintaining a high level of security. This door is often installed as a legal requirement in high risk fire areas, such as schools, airports, food and hospitality premises. This door is galvanised, but can be powder coated on request.
