Beretta Insulated Steel Roller Shutters

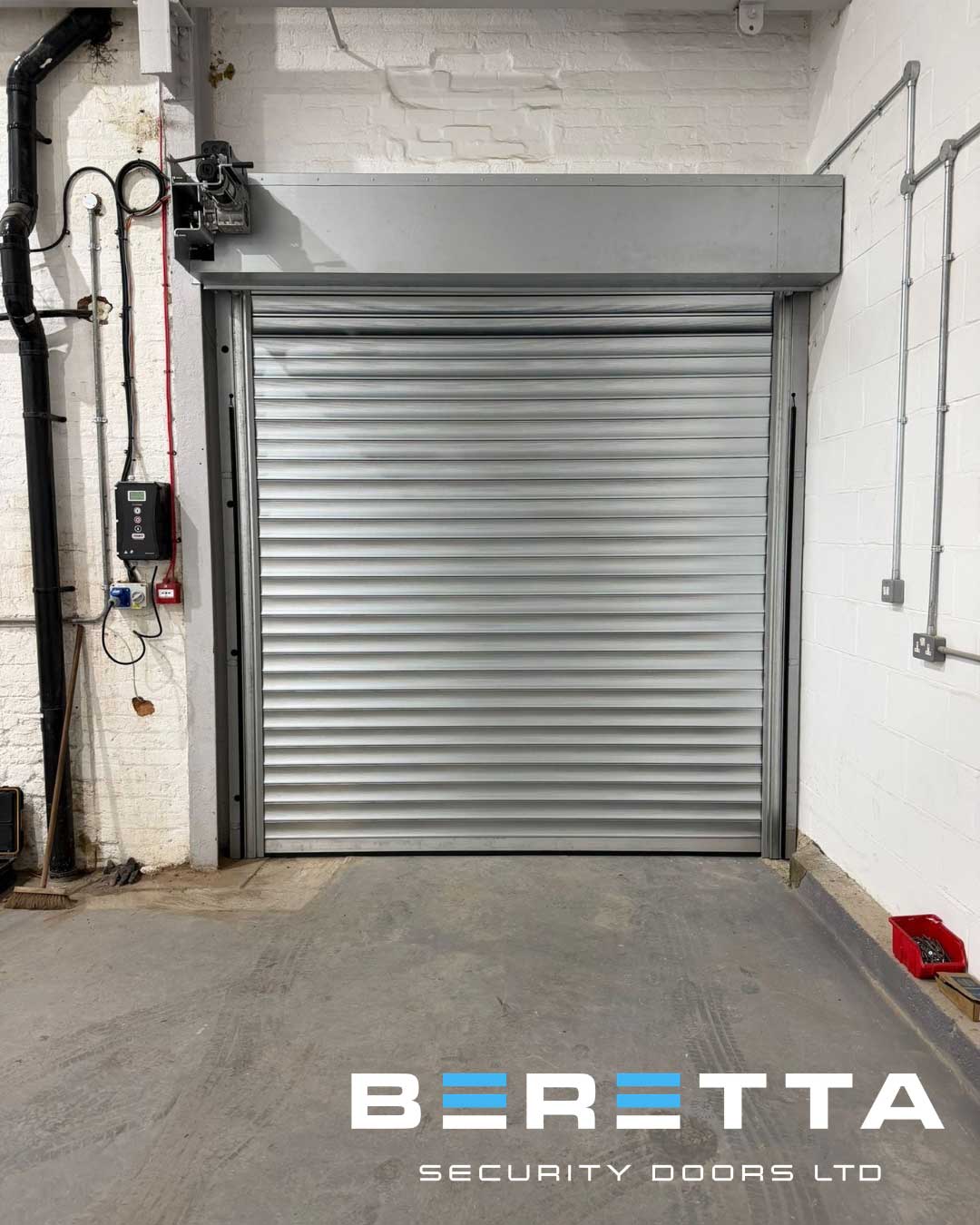

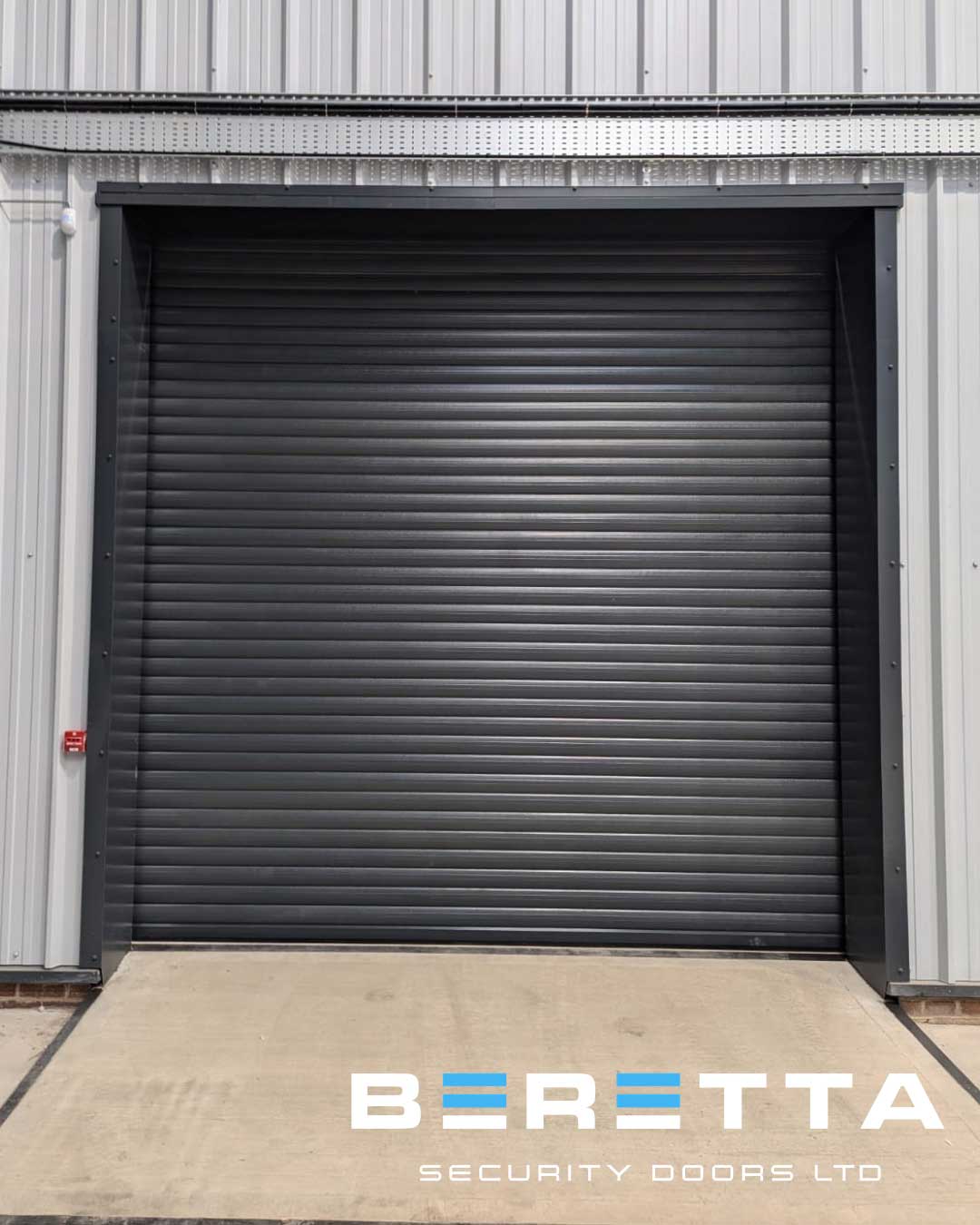

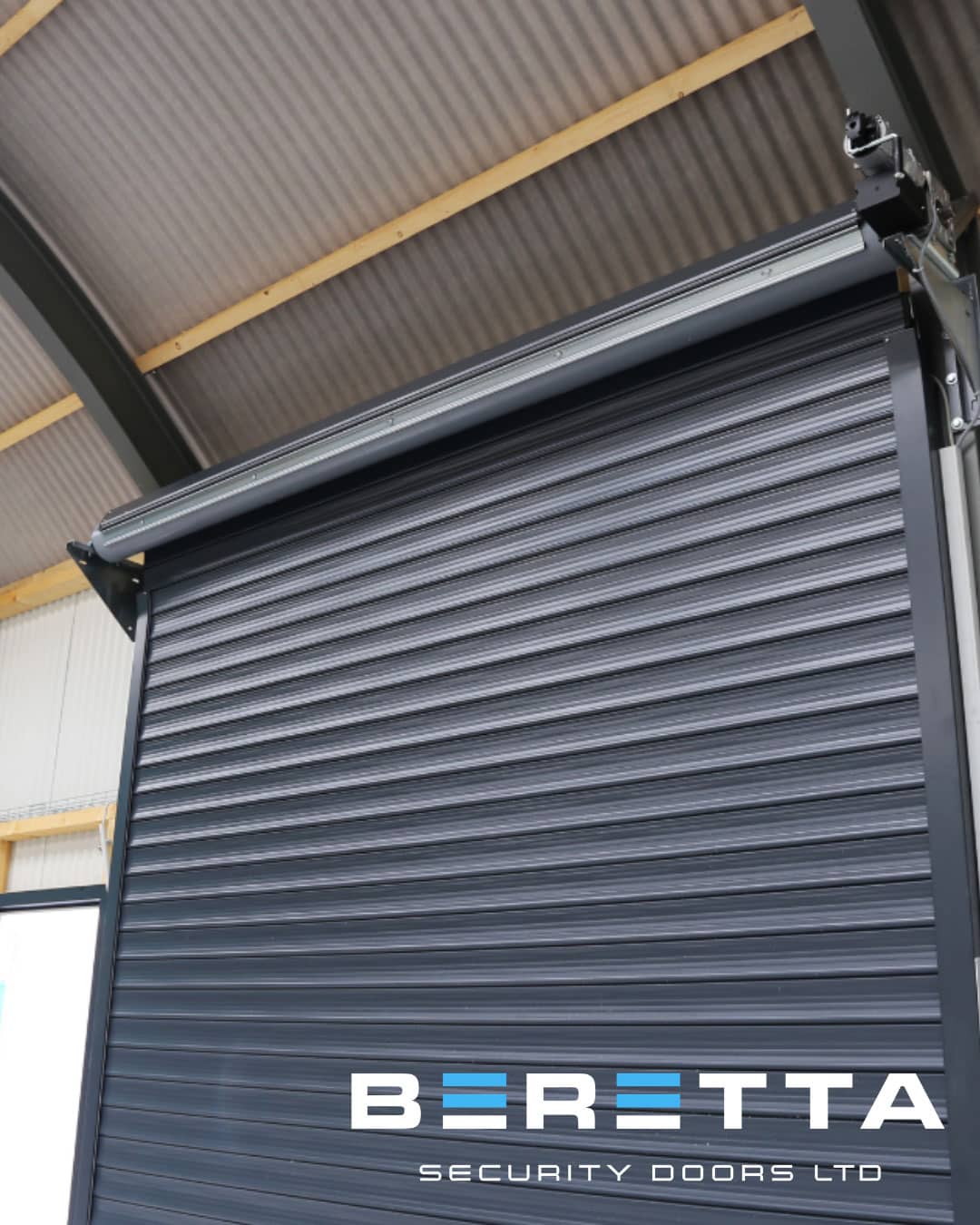

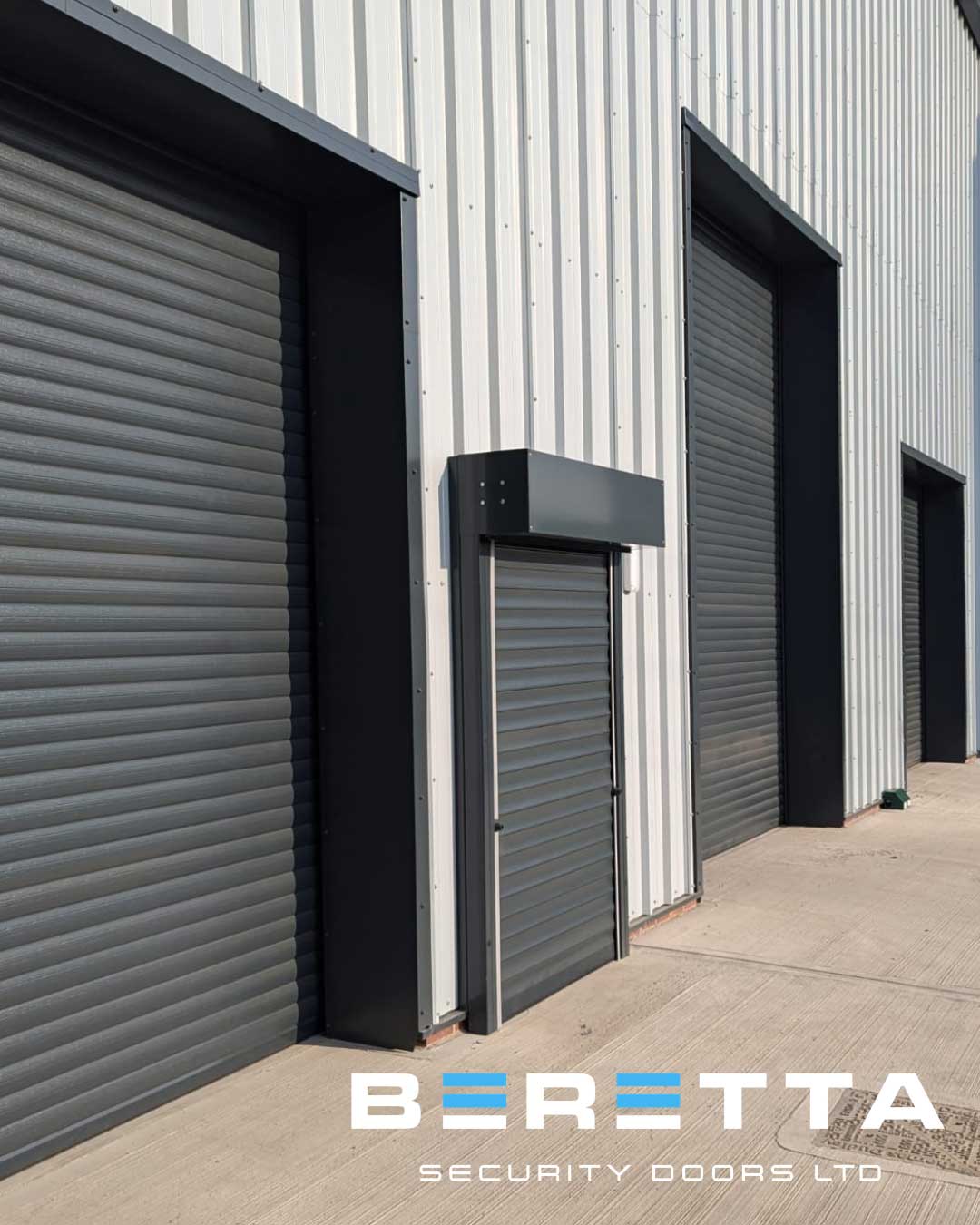

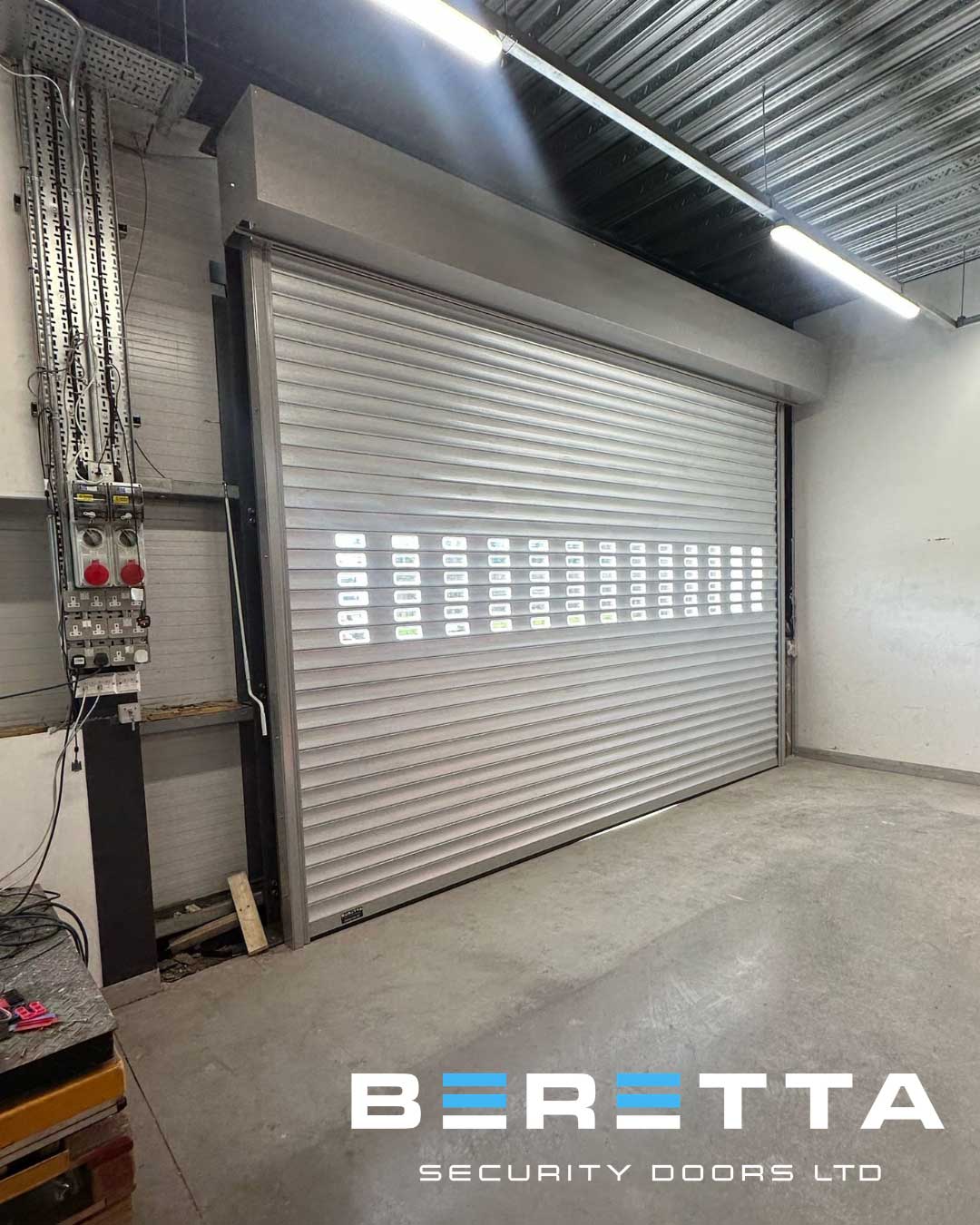

Our insulated steel security roller shutters are suitable for all types of industrial buildings, especially those with low headroom and when covering a large area. These insulated security shutters can maintain temperatures, reduce sound travel and are resistant to high winds. All of our industrial insulated doors are fitted with a soffit brush seal to prevent bird entry and weather ingress. They can be powder coated or have a plastisol hard wearing finish to add an additional level of robustness.

If you are looking to incorporate an insulated security roller shutter into a fast pace environment, you could consider upgrading to a high speed motor to achieve an insulated security rapid door.

Better Security, reduced energy costs

Our insulated industrial doors also offer a higher level of security due to it being double skinned. Not only do they have the insulating core, it also has an extra layer of aluminium or steel on the other side of the foam increasing the strength and sturdiness of the door whilst making it more difficult for any potential intruders to gain entry.

There are many advantages to installing an insulated industrial door at your premises; not only does it provide a higher level of security and strength due to its double-skin slats, it can reduce energy costs and minimise your carbon footprint. The superior thermal core regulates internal temperatures and reduces any draughts or heat loss. This will ultimately reduce your carbon footprint as the energy required to regulate the hot or cold temperatures within your building will be controlled by the insulated roller shutter.

Beretta insulated steel security roller shutters based in Shrewsbury, Shropshire, are very popular with cold store facilities and food processing plants where temperature control is essential.

BDI95

Our BDI95 insulated roller shutter is ideal for industrial, agricultural and warehouse properties and can be installed in areas with limited headroom. This smooth operating door is insulated with injected foam and designed to withstand and protect against strong winds. The BDI95 can be upgraded to a fast action motor, creating the same high quality door with rapid operating speed, ideal for fast paced environments.

Hidden by css

Product Details

Product: BDI95
Fit: Internal, reveal or external face fit
Popular Use: Commercial, Industrial and Agricultural
Security Level: Medium to High Security

Product Specifications

Slat Options: Cold rolled steel 95mm slat with foam insulation.
Maximum width: Overall 8000mm, 6000mm for Tubular motor.
Finish: Galvanised as standard ; Option to upgrade to plastisol finish or any powder coated RAL colour for a surcharge.

Curtain Specification
Curtain weight per m²: 12kg
Maximum Surface Area: 15m² Tubular motor, 40m² Outboard motor.
Box: Steel casing and fascia for a surcharge.
Guides: Width 85mm Galvanised steel guide channels with clip on brush seals. Extruded aluminium bottom slat with rubber.

Guide Height (mm)	Plate size (mm)
3400	400
4200	450
5000	500

Operation Options

Operation Options: Tubular motor, Outboard/Inline or fast action motor operation.

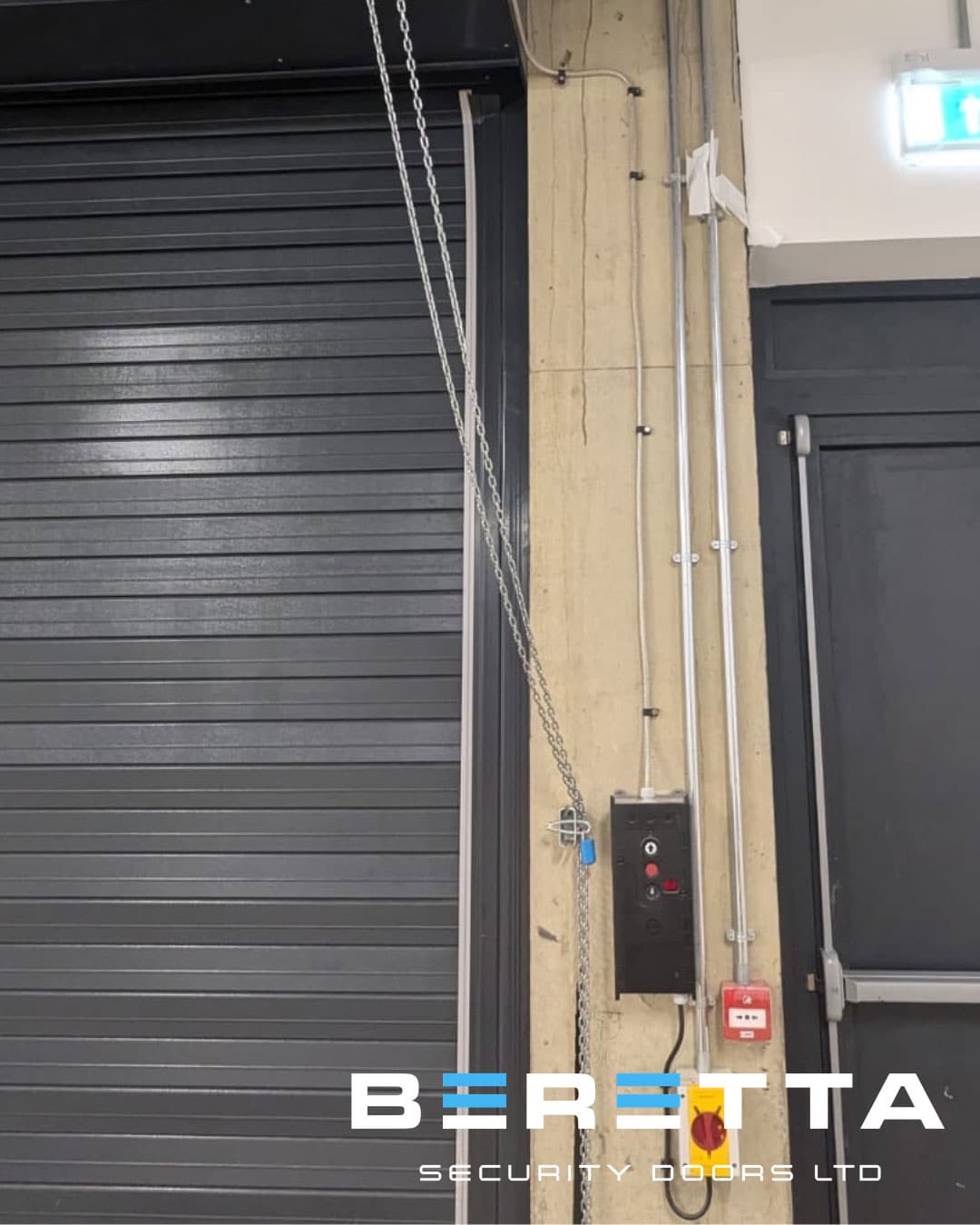

All of our roller shutters come with built in or added safety brake systems as standard. All have manual override options, customised to suit your application. The doors can be operated in various ways, to suit you and your environment.
Tubular motor comes with key switch operation as standard, able to upgrade to push button, or remote/group control with option to operate with smart devices.
Outboard/Inline motor comes with push button control as standard, able to upgrade to key switch, or upgrade to remote/group control with option to operate with smart devices.

CAD Files & Drawings

Download BDI95 Drawing Pack

Download BDI95 RAL Colours

Download »

Download Colours »

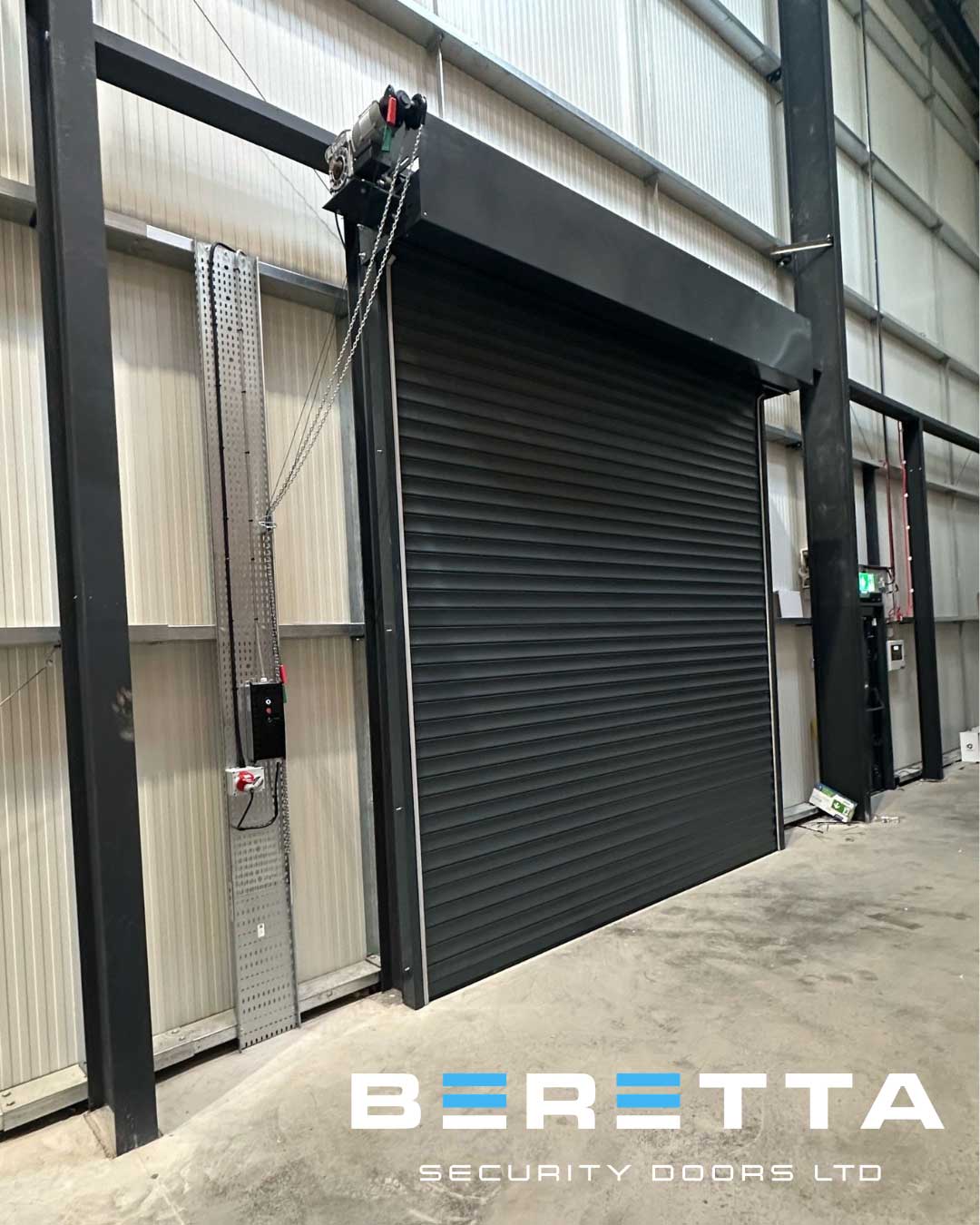

BDi95 insulated Roller Shutters from Beretta Security Doors, Shrewsbury, Shropshire.

BDI116

The BDI116 is an insulated roller shutter that can cover large openings due to its double steel lath. This insulated door is ideal for Warehouse, Industrial and Agricultural properties and can withstand high winds. The laths create a sleek, flat look when the door is closed in comparison to other industrial roller shutters. The BDI116 can be upgraded to a fast action motor, creating the same high quality door with rapid operating speed, ideal for fast paced environments.
